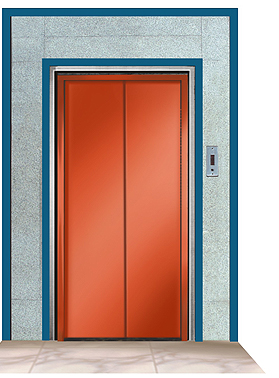

Auto Doors Elevator
| |
 |
 |
| |

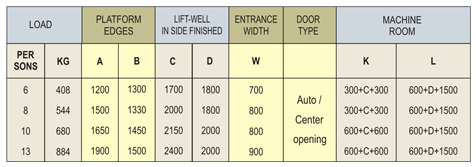

: Space Requirements for manual door opration passengner elevators :::::::::::::::::::::::::::: |
| |
|
 |
| |
|
| |
| SPEED MPS |

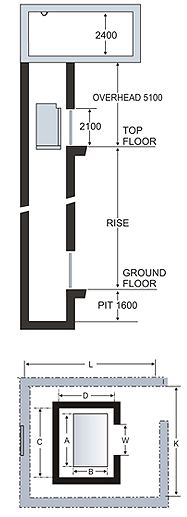

PIT DEPTH |
OVER HEAD |
| 1.0 |
1600 |
5100 |
| - |
- |
- |
|
| |
|
All Dimension are in mm.
This is General Data, it may be changed without notice. For more details contact us.
All hoist way walls should be minimum 230 mm brick or 150 mm R. C. C. |
|
 |
